S45-1050 – Simply45® Cat5e Shielded Internal Ground Standard Series RJ45 Modular Plugs. 50 pc Clamshell

Simply45 Standard Series connectors feature our reengineered connector designed for the technology used today. Simply45 only uses the highest quality materials to ensure reliable results that greatly reduce truck roll backs. Our connectors are commercial rated and feature a 3 prong style contact designed for all PoE application making Simply45 the most reliable RJ45 termination on the market today.

Part Number: S45-1050
Category Type Cat5e
Connector Style Standard Mod Plug
Wire Alignment Straight Insert
Cable Type STP
AWG 24AWG Solid , 28-26AWG Stranded.
Conductor Range 0.95 – 1.05mm (0.037″ – 0.041″)
Max Cable OD 6.1mm (0.240″)
Plug Material Polycarbonate
Material Rating UL94 V0 Commercial (Plenum, LSZH) Rated
Plug Color Blue Tint
Patent Number 9,543,729; 10,116,082; 10,573,990; 11,146,014
Contact Design 3 Prong Style
Contact Material Phosphor Bronze
Base Contact Plating 100µ of nickel plating
Surface Contact Plating 50µ 24ct Gold
UL & cUL Listed E520614
Compliant TAA, P65
HDBaseT Approved
Packaging Type Resealable Clam Pack
Connector Quantity 50 pieces
EAN/UPC: 817777017786
Weights (lb/kg): 0.480 lb / 0.218 kg
Dimensions (in/mm): 3.9 x 3.7 x 3.2 in / 99 x 94 x 81 mm

Related Products



Product Details

Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions.

Our S45-1050 shielded with internal ground Standard WE/SS 8P8C RJ45 modular plugs incorporate the following features:

Single Piece Design. The S45-1050 is a single piece fully shielded with an internal ground Standard WE/SS RJ45 modular plug for shielded (STP) LAN cables. No-load bar is required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6a, Cat6, and Cat5e.

3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signals integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts, please click here.

Solid and Stranded LAN Cables. The S45-1050 is ideal for most Cat5e STP (shielded twisted pair) solid 24 AWG LAN cables with a maximum cable diameter of up to 1.05mm (0.041”).  The S45-1050 supports wire diameters 0.95mm – 1.05mm (0.037” – 0.041”). The S45-1050 also works great with stranded shielded LAN cables such as those used on patch cords/leads including 10G rated Cat6a S/FTP patch leads.  The S45-1050 works with most 28-26 AWG stranded shielded Cat6a, Cat6, and Cat5e stranded shielded LAN cables. For larger shielded STP wire conductor sizes or larger LAN cable OD found on Cat6 solid STP and Shielded 10G solid LAN cables, please refer to our Simply45® part S45-1150 or S45-1155.

Improved Crosstalk Performance. The unique internal design of the S45-1050 Standard RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance. The S45-1050 accommodates most Cat5e STP LAN cables. If your shielded LAN cable has a larger wire conductor OD than the typical Cat5e shielded STP, we recommend using our part S45-1150 shielded Standard WE/SS RJ45 modular plugs.

Commercial Rated. These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca-rated LAN cables.

Color Tinted RJ45 Modular Plugs. The S45-1050 comes with a light blue tinted plug with overall internal ground shielding for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which. All Simply45® RJ45 modular plugs are color-coded for easy identification.

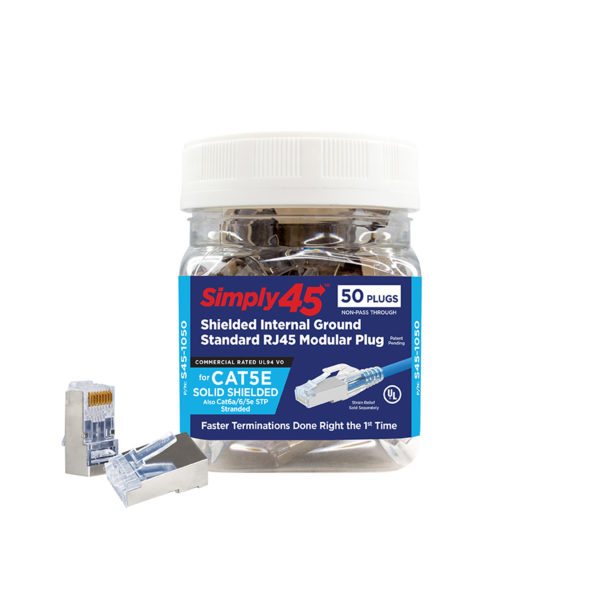

Convenient Plastic Jar. The S45-1050 comes in a convenient 50pc plastic jar with a white jar cap. Simply45® only uses quality packaging to support the rigors of the real world. This jar is sturdy and after using all the plugs, it can be repurposed for other needs in the installer’s kit.

UL Listed. The S45-1050 Standard WE/SS RJ45 modular plugs are UL Listed and bear the UL Logo on the Simply45® packaging. Only Simply45® provides the UL Listed logo for quality and safety on pass-through RJ45 modular plugs. UL is the strictest 3rd party verification service in the world and products bearing the UL mark represent the highest quality and safety standards.

PoE/PoH Rated. The S45-1050 is ideal for PoE/PoH applications. The S45-1050 is fully shielded; uses the correct 3-Prong Pin design; true 24ct gold plated pins, and is made using the highest quality materials for RJ45 modular plugs. This all ensures lower resistance and less heat build-up than cheaper-made RJ45 that are out on the market.

Compliant with Industry Standards. ANSI/TIA 568.2-D, 1096-A; ISO/IEC 11801, 60603-7, 8877:1992; FCC

Lic. Under Patents: 9,543,729; 10,116,082; 10,573,990; 11,146,014.

Lifetime Warranty. We are so certain that you will be pleased with the performance of our S45-1050 that we now offer a Lifetime Limited Warranty.  For more details on our Lifetime Limited Warranty, please click here.
